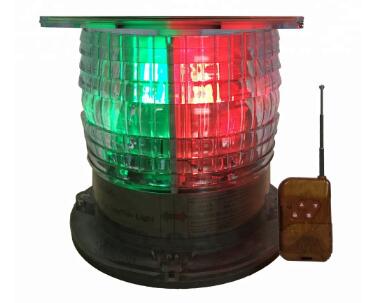

DoubleWise/MULTI-FUNCTION LED MARINE NAVIGATION LIGHT

DWS305MF is a multi-function boat solar all-round anchor navigation light fully complied with COLREGS(1972) for these vessels such as Fishing, Anchored, Aground or not under-command etc..Its visibility is up to 3NM and its autonomy is more than 150 hours in full charge.It has the characteristics of self-contained solar, durable ,anti-UV and easy-installation.

The light turns on at dusk and off at dawn automatically after turned on by the Remote Controller.When the ship returns to port, the light can be turned off with a remote control.

Features and Benefits

Steady-on and its visibility: 3NM

Solar panel 2.7Wp, replaceable Ni-HM battery 4.8Ah/4.8V.

Light Output :	112.5°Red+112.5°Green+135°White	Navigation Light
	360°White ,Steady-on	All-round Light
	360°White ,Flashing	Signal Light or SOS Light

Turns on at dusk and off at dawn automatically after turned on by the Remote Controller.

Completely self-contained and waterproof IP65.

Charge under nearly all weather conditions and up to 150 hrs of operating capacity from a full charge.

Lens is polycarbonate with anti-UV which is produced by Bayer.

Manufactured to ISO9001:2015 QAS .

Specifications

Light Output	Steady-On
Average Intensity	White:26cd /Red:24cd /Green:25cd
Visibility	3NM
Horizontal Output	112.5°Red+112.5°Green+135°White Navigation Light 360°White ,Steady-on All-round Light 360°White ,Flashing Signal Light or SOS Light
Minimum Autonomy	150 Hours
Latitude Range	55°S to 55° N
Solar Panel	Mono-crystalline; Maximum Power 2.7Wp; Efficiency 16%
Battery	Ni-MH, replaceable 4.8AH/4.8V
Lens Material & Colors	Polycarbonate & Clear
Mounting Option	4 bolts or Magnetic base
Weight	1.2Kg
Waterproof	IP65
Quality Assurance	ISO 9001:2015
Patents	Chinese patent: ZL201430444455.3 Other patents pending

Typical Applications

Marine Navigation	Special Navigation
Fishing Boat	Sailing Vessel
Anchored Vessel	Not under-command Vessel
Minesweeper	Pilot Vessel

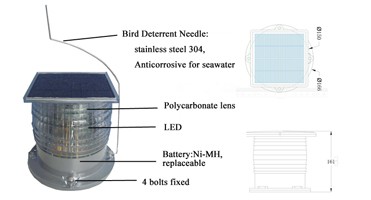

The 56M Crane Barge in Dalian	Dimension Drawings

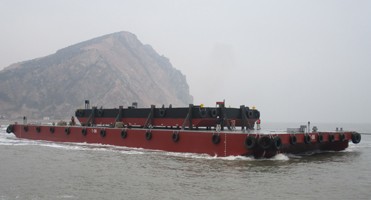

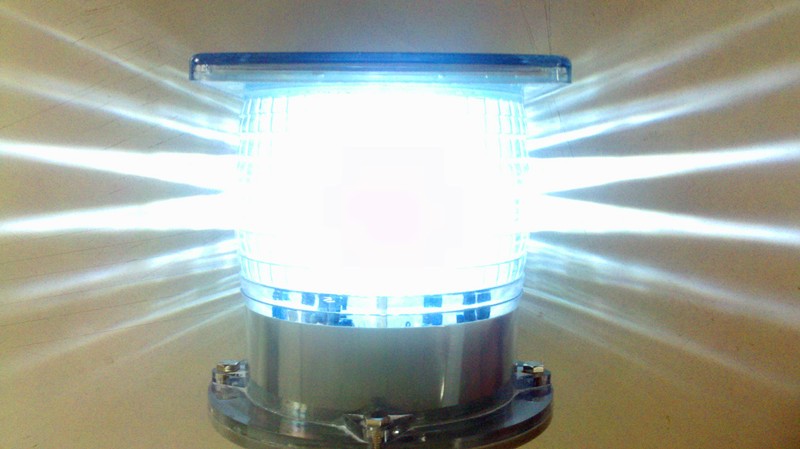

The 60M Deck Barge in Japan	DWS305MF at Night

Related Products

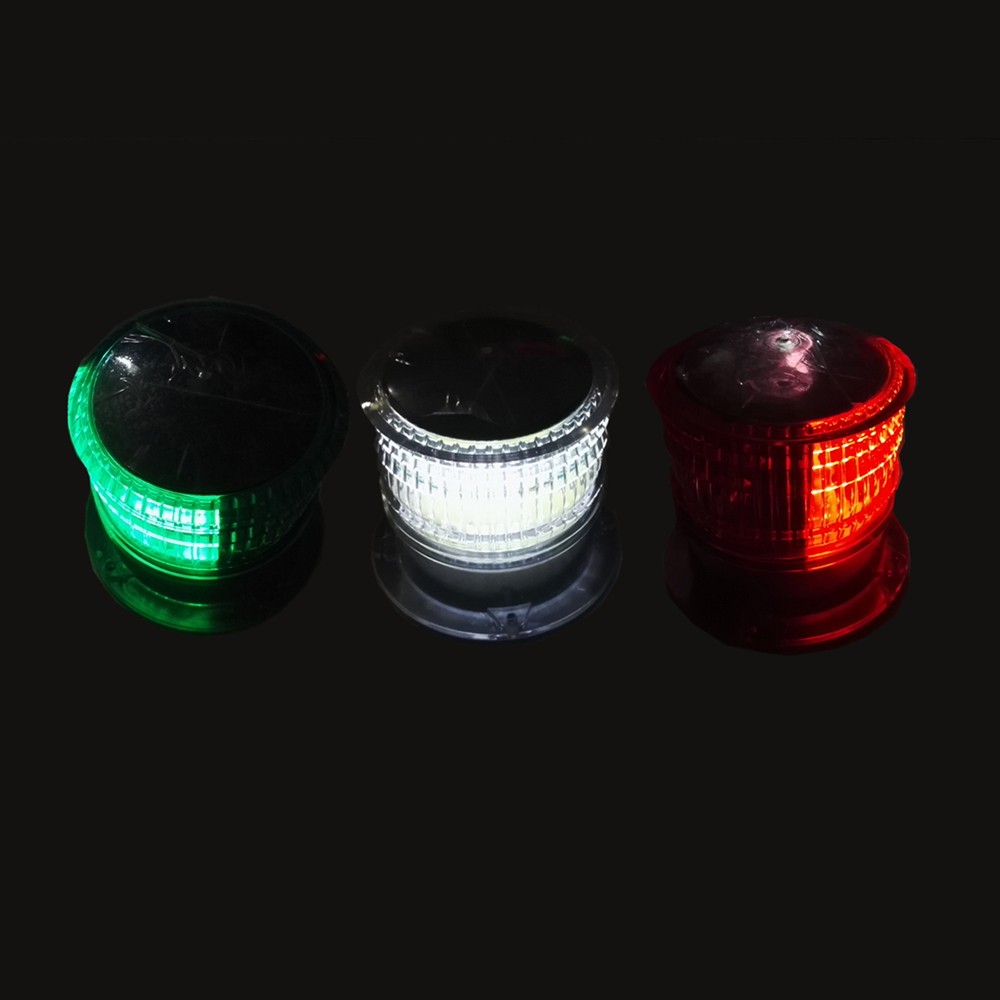

Tri-color Solar Navigation Light 2NM	3NM Solar Navigation Light	Marine Navigation Solar Lantern 4NM

FAQ

1.What kind of vessels are suitable for use in solar navigation light?

Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..

2.Is there an attachment that is suitable for a variety of installation methods?

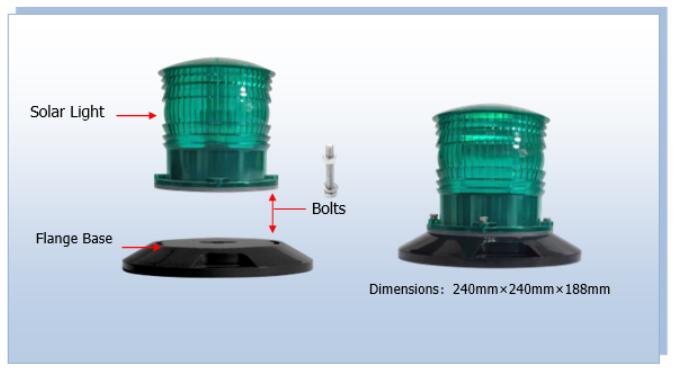

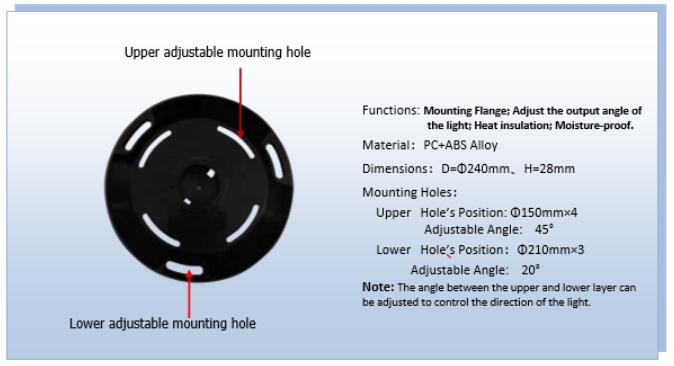

Yes,there is the installing adapter FlangeBase as follows. In order to better heat insulation and waterproof, we recommend to use it.
