DoubleWise/SOLAR TRI-COLOR MARINE NAVIGATION LIGHT

DWS301/TC is a solar marine lantern with three colors (112.5° Red + 112.5°Green + 135°White = 360°) specially designed for the safety of small boat navigation such as yachts and fishing boats.Its function complies with COLREGS(1972) and equals to the combination of a port light,a starboard light and a stern light.It has the characteristics of self-contained solar, durable ,anti-UV and easy-installation.

Features and Benefits

Steady-on and its visibility: 2NM

Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah.

Combined colors: 112.5°Red + 112.5°Green + 135°White=360°

Turns on at dusk and off at dawn automatically or by a touch switch.

Completely self-contained and waterproof IP67.

Charge under nearly all weather conditions and up to 70 hrs of operating capacity from a full charge.

Individual dome can protect the solar panel and raise its efficiency.

Lens is polycarbonate with anti-UV which is produced by Bayer.

Manufactured to ISO9001:2008 QAS and certified CE.

Typical Applications

Marine Navigation	Special Navigation
• Yacht	• Tug Boat
• Fishing Boat	• Dredger

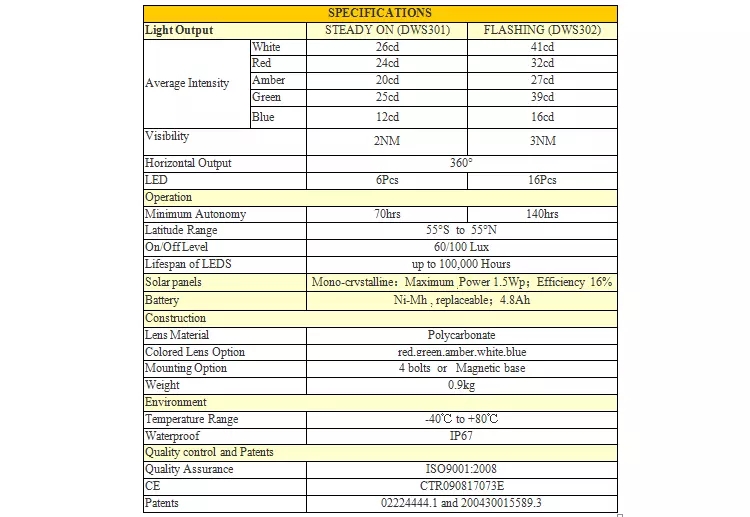

Specifications

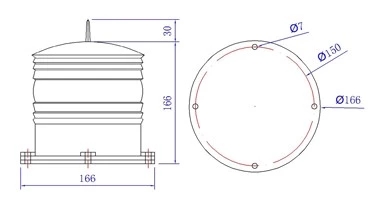

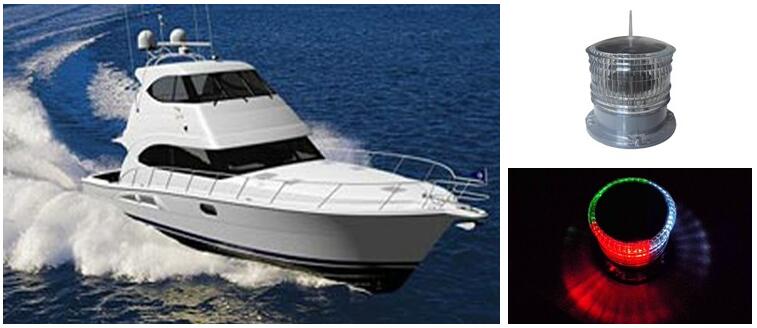

Yacht	Dimension Drawings

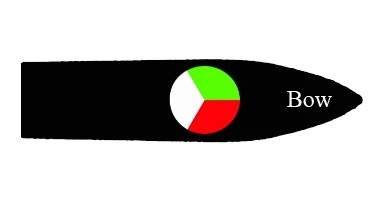

The Installation Drawing	Fishing Boat

Related Products


3NM Solar Marine Navigation Light	Multi-function LED Marine Navigation Light	6NM Marine Solar Masthead Light

Certifications

FAQ

1.Where is the solar Tri-color light used?
The solar tri-color light is specially designed for the navigation safety of small boats such yachts and fishing boats.In order to install easily,this marine navigation lantern combines the function of the port light(112.5°Red),the starboard light (112.5°Green)and the stern light(135°White).

2. Can this lantern easily be turned off when it isn’t used for a long period?
Yes,you can easily turn off this lantern by a touch switch in the side of it.We also suggest that you turn off it when it isn’t used for a long time.So it is only charged during the day and discharged at night.

3.Is there an attachment that is suitable for a variety of installation methods?

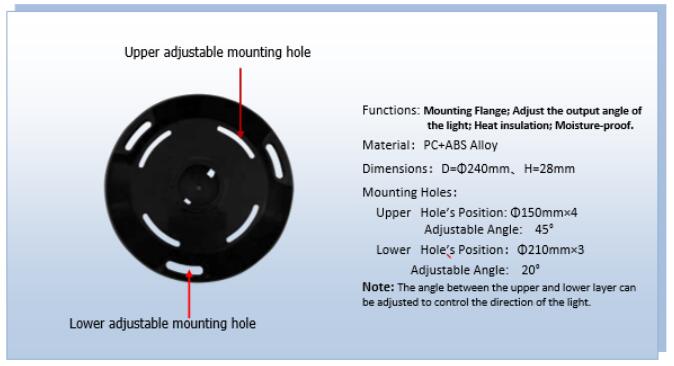

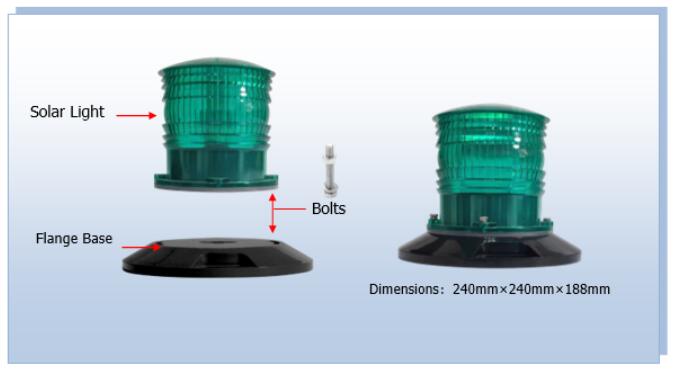

Yes,there is the installing adapter FlangeBase as follows. In order to better heat insulation and waterproof, we recommend to use it.
